XGB-B100 Height Adjustable Wash Basin Bracket

Share:

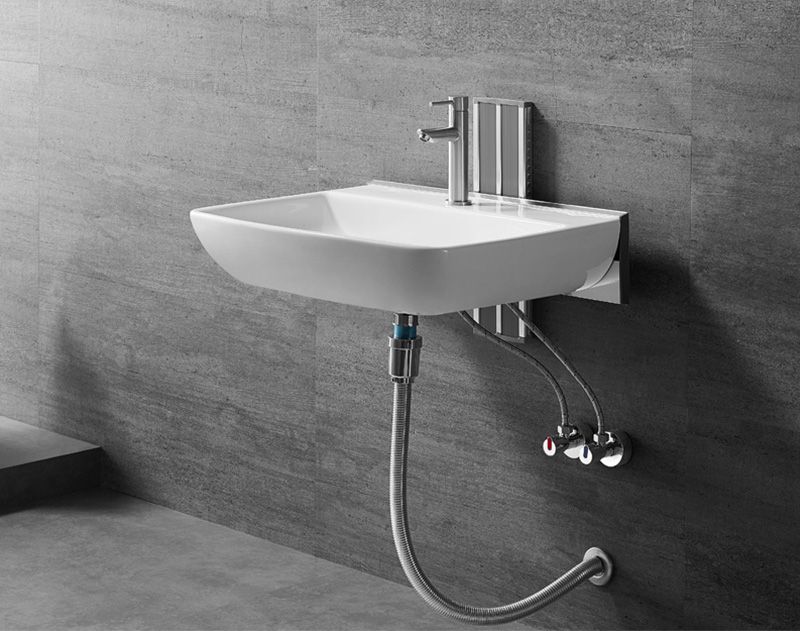

The height adjustable wash basin bracket offers excellent flexibility, durability, and convenience. It’s perfect for users with mobility challenges or wheelchair users.

The height can be easily adjusted manually by loosening the lock on the vertical wall track. The adjustable screw spacing fits wash basins of any width, making it versatile and simple to use.

This practical design ensures comfort and accessibility for various needs. This innovative design simplifies operation while offering maximum comfort and functionality, making it an ideal solution for care facilities, homes, and accessible environments.

Advantages

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantages

1. High Quality and Durability: Constructed from solid-grade anodized aluminum alloy with a weight capacity of up to 150kgs, ensuring long-lasting performance.

2. Maximum Flexibility: Height adjustable to cater to the needs of multiple users, ensuring comfort and independence, especially for wheelchair users.

3. Easy Installation: Wall-mounted design with a secure track system and simple lock mechanism for attaching or detaching the support arms.

4. Space-Saving Design: Foldable design saves space when not in use, with a minor horizontal wiggle during use, which is secure and normal.

5. Versatile Applications: Ideal for care homes, hospitals, and private homes, offering adaptable solutions for various users’ requirements.

6. Ergonomic Comfort: Ensures ergonomic comfort, independence, and convenience for people of all abilities.

7. Why Choose us? Our height adjustable wash basin brackets are engineered for quality, safety, and user-friendly operation. Whether for residential or commercial applications, this product delivers unparalleled performance and value.

Key Features

1. High Quality and Durability

o Constructed from solid-grade anodized aluminum alloy with a weight capacity of up to 150kgs.

o Supports the weight of a basin and provides stability for users when leaning or standing.

o Fully tested to meet ISO 17966:2016 standards for safety and longevity.

2. Maximum Flexibility

o Suitable for all bolt-mounted wash basins.

o Height adjustable to cater to the needs of multiple users, ensuring comfort and independence, especially for wheelchair users.

3. Easy Installation

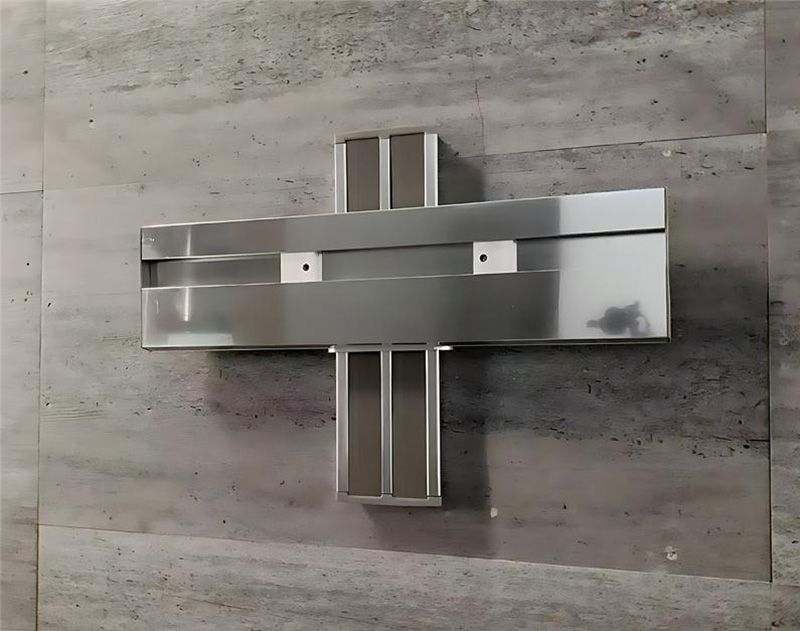

o Wall-mounted design with a secure track system.

o Simple lock mechanism for attaching or detaching the support arms.

o Foldable design saves space when not in use, with a minor horizontal wiggle during use, which is secure and normal.

Specifications

· Item NO.: XGB-B100

· Color: Bright Chrome

· Size: 600x60x425mm

· Weight Capacity: 150kgs

· Standards Compliance: ISO 17966:2016

Composition and Materials

· Main Material: Anodized aluminum for durability and corrosion resistance.

· End Caps: ABS-capped ends for added safety.

· Fixing Kits and Fasteners: Stainless steel.

· Wall Track Cover: PVC for an elegant finish.

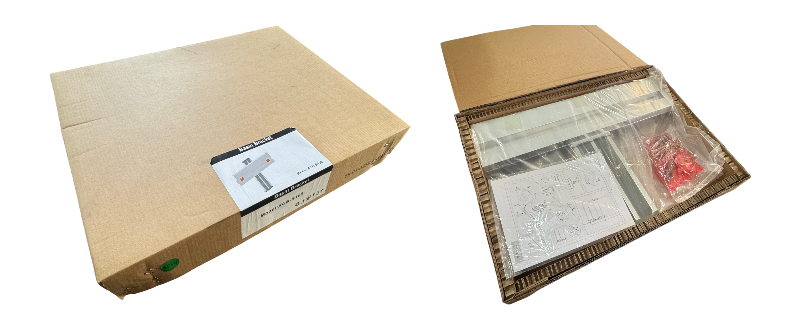

Packaging

● Packaging Details:One set per carton.

● Carton Size: 670x510x120mm

● Gross Weight: 6.26kgs

Maintenance

Cleaning and Maintenance:

1. Clean with hot water or mild soap.

2. Remove chalky deposits with a 3:7 acetic acid-to-water solution, and rinse thoroughly with clear water.

3. Avoid using chlorine-based, corrosive, or abrasive cleaners to prevent surface damage.

Technical Data Sheet

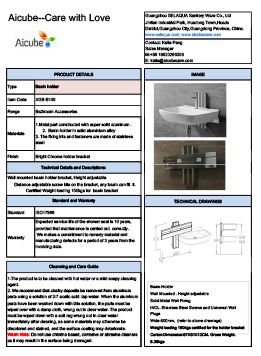

XGB-B100 Technical Data

XGB-B100 Technical Data

Installation Manual

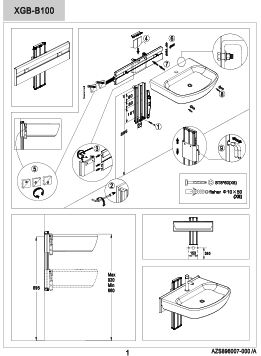

XGB-B100 Installation

XGB-B100 Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
