XGB-B100T Electric Adjustable Wash Basin Holder

Share:

Improve Accessibility and Comfort

Experience the convenience of electric adjustment with the XGB-B100T Wash Basin Holder. Designed for the elderly or individuals with limited mobility, it allows effortless height adjustment via remote control, reducing physical strain and enhancing daily comfort.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Enhanced Safety: The electric motor rod is located above to ensure electricity does not come into contact with water lines, minimizing risk.

2. Flexibility and Accessibility: Compatible with any 600mm wide bolt-mounted washbasin, offering electric height adjustment for diverse user needs.

3. Universal Design: Wall-mounted installation with ample space underneath for wheelchair accessibility and optional tilted mirror integration.

4. Easy Maintenance: Free space underneath the basin allows for easy cleaning and maintenance of drains and water pipes.

5. Promotes Independence: Ideal for wheelchair users and individuals with mobility challenges, providing optimal height adjustment for enhanced usability.


Enhance your bathroom experience with Aicube Care's advanced, ergonomic, and safe solutions, designed to promote independence, flexibility, and accessibility for all users.


Key Features

High Quality and Durability

o Made from robust anodized aluminum alloy with a load capacity of 2000N in both push and pull.
o ISO 17966:2016 certified for static and life cycle tests.
o Holds the basin and assists users with rising or leaning.


Maximum Flexibility

o Compatible with any 600mm wide bolt-mounted washbasin (sold separately).
o Electric height adjustment with a stroke length of 200mm at a speed of 9mm/s.


Built-in Safety Features

o Electrical limit switch with IPX4 protection, operating at ≤48dB noise level.
o Safe separation of electrical components and water lines.


Universal Design

o Wall-mounted installation with a sleek, space-saving build.
o Ample space underneath for wheelchair accessibility.
o Optional tilted mirror integrates seamlessly with the unit.
o Mirror is specially designed to suit our slider system.

XGB-B100T Electric Adjustable Wash Basin Holder

Specifications

● Input Power: 100-240V~50/60Hz, Max. 200W
Output Power: 24V/5A
● Standards Compliance: IEC60601-1:2012, EN60601-1:2006+A12:2014, ANSI/AAMI ES60601-1:2005

● Height Adjustment:

o Stroke Length: 200mm

o Speed: 9mm/s

● Noise Level: ≤48dB

● Load Capacity: 2000N (push and pull)

Composition and Materials

Bracket: Anodized aluminum.
● Covers: Stainless steel and PVC.
Mirror Frame: Aluminum.

Packaging

  • Back Column: 1220x670x100mm, 15.5kg

  • Mirror: 980x680x80mm, 6.05kg

  • Optional Wash Basin: 660x520x180mm, 17.2kg

Maintenance

Cleaning Instructions:

1. Clean with hot water or mild soapy solutions.

2. For aluminum parts, remove chalky deposits with a 3:7 acetic acid-to-water solution, and rinse thoroughly with clear water.

3. Avoid chlorine-based, corrosive, or abrasive cleaners to preserve the product's surface.

Technical Data Sheet

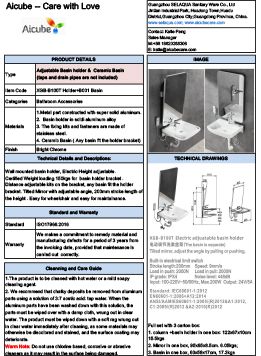

XGB-B100T +B001 Technical Data

XGB-B100T +B001 Technical Data

Installation Manual

XGB-B100T Installation

XGB-B100T Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
