FSL-900 Angled Shower Grab Bar for Bath – Professional Overview

Share:

The 135-Degree Angled Grab Bar  is specifically designed to cater to individuals with limited mobility, balance challenges, or difficulty standing for extended periods. This thoughtfully engineered grab bar provides superior leverage and support in bathrooms and other indoor areas, significantly enhancing safety and stability.


Constructed from anodized aluminum alloy for outstanding durability and corrosion resistance, this angled grab bar offers a seamless balance of functionality, style, and reliability. Its design minimizes the risk of slips and falls, empowering users with greater independence and confidence.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Ergonomic and Aesthetic Design: The 135-degree angled grab bar offers a seamless, ergonomic grip, while decorative flange bases add a stylish touch to any bathroom.
2. Superior Durability: Made from super-solid anodized aluminum alloy, ensuring resistance to corrosion and exceptional durability.
3. High Load Capacity: Safely supports up to 150 kg pull force, conforming to ISO 17966:2016 standards.
4. Versatile Installation: Designed for horizontal or angled installation, offering flexible placement to meet various user needs.
5. Dual Functionality: Can be used as a secure handhold and as a holder for towels, clothing, or other items.
6. Easy Maintenance: Simple cleaning and maintenance ensure long-lasting performance and aesthetics.
7. Why Choose the Aicube Angled Shower Grab Bar?
The Aicube angled grab bar combines professional-grade materials, advanced design, and rigorous testing to deliver unparalleled safety and comfort. It is an essential addition to bathrooms, promoting independence and reducing risks for elderly individuals or those with mobility challenges.
Enhance your bathroom’s safety and style with the Aicube 135-Degree Angled Grab Bar. Contact us today to learn more or place your order.

Key Features

1. Ergonomic and Aesthetic Design

o Natural Arc Transition: The 135-degree bend creates a seamless, ergonomic grip for enhanced comfort and safety.

o Decorative Base Options: Flange bases come in various colors, adding a stylish accent to bathroom interiors.

o Concealed Mounting: Hidden screws ensure a clean, polished look while maintaining structural integrity.

2. Superior Durability and Performance

o Robust Material: Fabricated from super-solid anodized aluminum alloy, ensuring resistance to corrosion and exceptional durability.

o High Load Capacity: Safely supports up to 150 kg pull force, conforming to ISO 17966:2016 standards.

o Secure Grip: A 35mm tube diameter provides an easy-to-grip surface, suitable for users of all hand sizes.

3. Flexible Installation Options

o Designed for horizontal or angled installation, offering versatile placement to meet various user needs.

o Reliable fixing system ensures stability and safety in all mounting scenarios.

Specifications

1. Item NO.: FSL-900

2. Origin: China

3. Color: Dark Silver

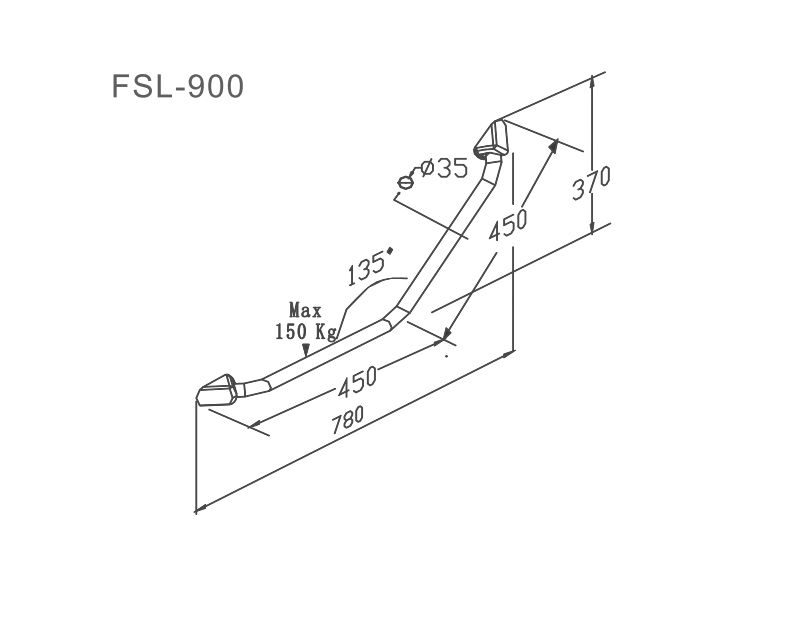

4. Size: 450+450mm (Tube diameter: 35mm, 135-degree angle)

5. Application: Bathroom grab bar for elderly care and general mobility assistance.

6. Weight Capacity: Up to 150 kg pull force.

7. Standards Compliance: ISO 17966:2016.

8. Professional Notes on Installation and Safety

  • Secure Mounting: Ensure the grab bar is securely mounted to metal or wood studs or other reinforced parts of the wall to maintain stability under load.

  • Flange Base Movement: Slight movement during initial adjustment does not affect the product’s safety or functionality.

  • Optimal Placement: Install the grab bar at a height and angle suitable for the intended user, ensuring optimal support and accessibility.

Composition and Materials

1. Grab Bar: High-grade anodized aluminum for durability and long-term performance.

2. Flange Base: Made from PP reinforced with 15% glass fiber, ensuring strength and rigidity.

3. Fixing Kits and Fasteners: Constructed from stainless steel to prevent rust and enhance longevity

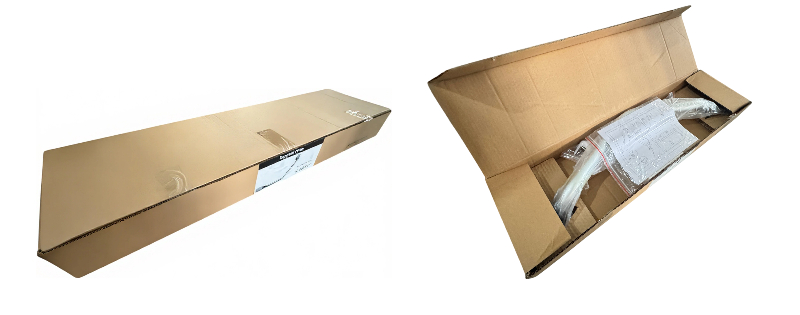

Packaging

  • Packaging: Each grab bar is securely packed in a durable brown carton.

  • Carton Dimensions: 920x250x100mm

  • Gross Weight: 1.5 kg

Maintenance

1.Routine Cleaning

· Use hot water or mild soapy solutions for everyday cleaning.

2. Chalky Deposit Removal

· Prepare a 3:7 acetic acid-to-water solution for removing chalky residues. After cleaning, thoroughly rinse with a damp cloth and dry immediately with a soft rag to preserve the surface coating.

3. Prohibited Cleaners

· Avoid chlorine-based, abrasive, or corrosive cleaning agents, which may cause surface damage or discoloration

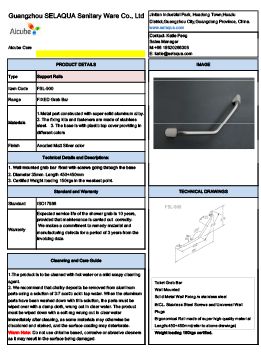

Technical Data Sheet

FSL-900 Technical Data

FSL-900 Technical Data

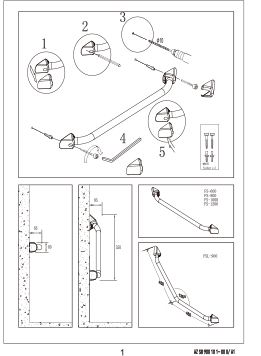

Installation Manual

FSL-900 Installation

FSL-900 Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
