LWG-500 LWG-700 LWG-900 LWG-1200 Stainless Steel Flange Grab Bar

Share:

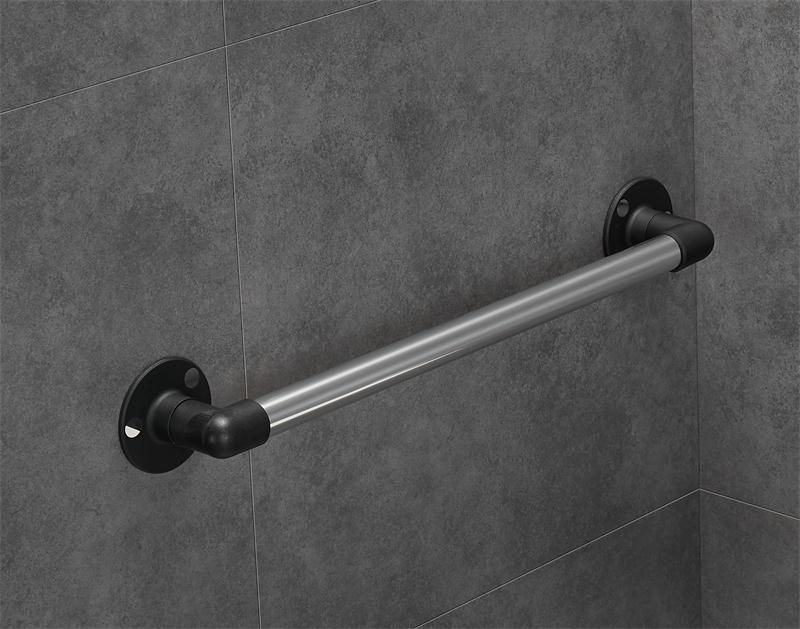

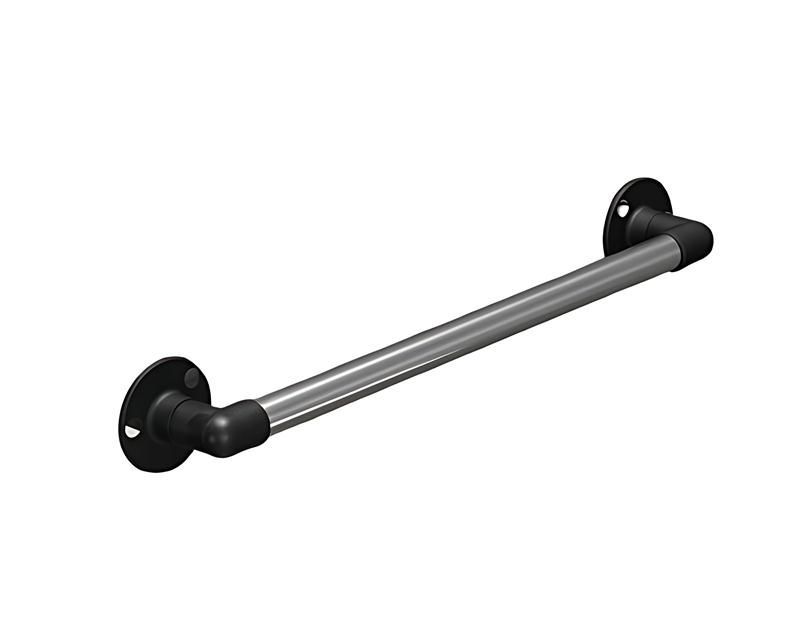

The Stainless Steel Flange Grab Bar is designed to meet the needs of individuals with limited mobility, balance challenges, or difficulty standing for extended periods. Perfect for bathrooms and other indoor locations, this grab bar provides greater leverage and support, enhancing stability and independence by reducing the risk of slips and falls. Its elegant arc design, combined with a unique fixed flange base, ensures both functionality and style. The black stainless steel color matches along with the flat screw cover on the flange make unique decoration of the product. This well designed grab bar could receive all of our hanging style support rails and shower seats.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Unique and Stylish Design: The naturally arced grab tube ensures an ergonomic and comfortable grip. Decorative flange bases in Matt Black color add elegance to bathrooms. The concealed mounting design supports easy installation at any angle while maintaining a clean, streamlined appearance.
2. Versatile Installation Options: Can be mounted vertically, horizontally, or diagonally to accommodate different needs and spaces. Ideal for bathrooms, hallways, or other areas requiring enhanced stability.
3. Superior Durability and Safety: Constructed from super solid anodized aluminum alloy, offering exceptional strength and corrosion resistance. Safely supports up to 150 kg, with a diameter of 35mm for a secure grip suitable for all hand sizes. Complies with ISO 17966:2016 standards, ensuring safety and durability with a 1.5 safety factor.

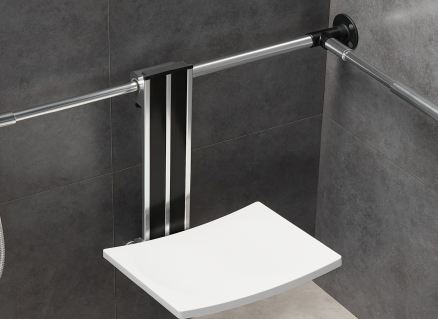

4.Multi-Functional Utility: Beyond bathroom use, these grab bars can also hold clothing, towels, and more, making them a versatile addition to any indoor space. Can be used as a receiver to adapt our hanging shower seat or support rails.
· Upgrade your bathroom safety with the Aicube Grab Bar, blending functionality with modern design. Enhance independence and reduce risks with a grab bar built for lasting support and style.

Key Features

1. Ergonomic Design: Naturally arced grab tube for comfortable grip.
2. Elegant Appearance: Matt Black flange bases and concealed mounting design.
3. Flexible Installation: Vertical, horizontal, or diagonal mounting options.
4. High Safety Standards: Complies with ISO 17966:2016, supports up to 150 kg.
5. Multi-Use: Suitable for bathrooms, hallways, and other indoor spaces.

Specifications

1. Item Numbers: LWG-500, LWG-700, LWG-900, LWG-1200.

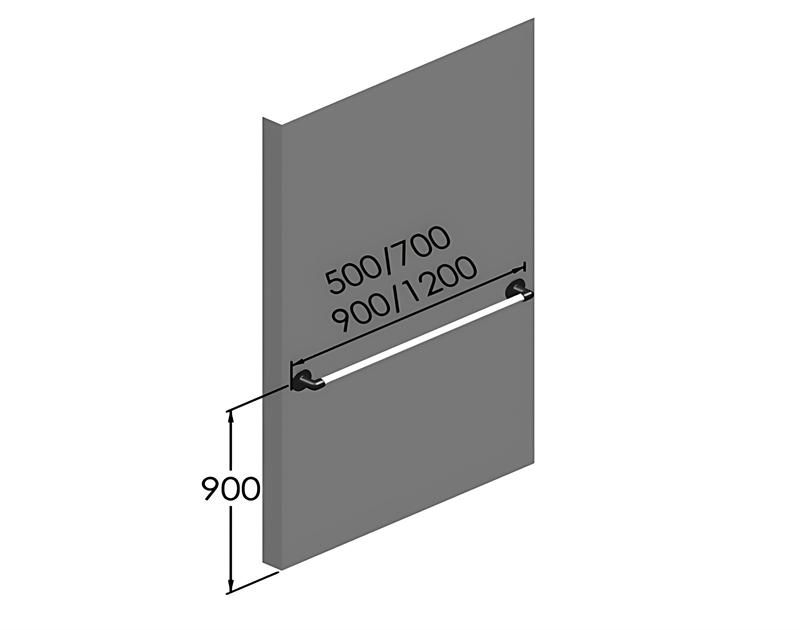

2. Dimensions: Available lengths: 500mm, 700mm, 900mm, 1200mm (Tube Diameter: 35mm).
3. Weight Capacity: Up to 150 kg.

4. Color: Bright Chrome.
5. Target Audience: Homeowners seeking enhanced bathroom safety, Nursing homes, hospitals, and rehabilitation centers, Bathroom safety equipment suppliers and distributors.
6. Focus: A combination of durability, safety, and aesthetics, making these grab bars ideal for bathrooms and indoor spaces.
7. Installation: Ensure proper installation using the included stainless-steel fasteners to maximize safety and performance.
8. Wiggle Allowance: Slight movement in the flange base does not compromise stability or safety.

Composition and Materials

1. Grab Bar Construction: Super solid anodized aluminum alloy for strength and corrosion resistance.
2. Flange Base Material: 304 Stainless steel connecting with different joints made in durable PP reinforced and 15% glass fiber.
3. Fasteners and Fixing Kits: High-quality stainless steel for secure and long-lasting installation.

Packaging

1. Model: LWG-500, LWG-700, LWG-900, LWG-1200.
2. Carton Size: 540x130x130mm, 740x130x130mm, 940x130x130mm, 1240x130x130mm.
3. Gross Weight: 1.6 kg, 1.8 kg, 2.1 kg, 2.6 kg.
4. Packaging: Each grab bar is packed in a durable brown carton to ensure safe transport.

Maintenance

1.Routine Cleaning: Use hot water or a mild soap solution.
2. Chalky Deposits Removal: Clean aluminum parts with a 3:7 acetic acid-to-water solution. Wipe with a damp cloth and immediately dry with a soft rag to avoid discoloration and surface damage.
3. Avoid: Chlorine-based, corrosive, or abrasive cleaners to preserve the surface finish.

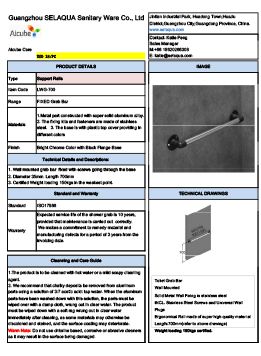

Technical Data Sheet

LWG-700 Technical Data

LWG-700 Technical Data

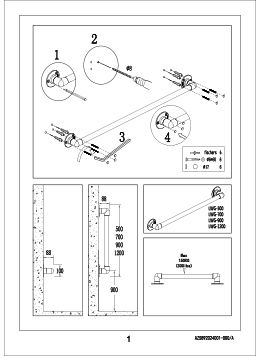

Installation Manual

LWG-(500,700,900,1200) Installation

LWG-(500,700,900,1200) Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
