XFS Telescopic Grab Bar for Elderly Care in Bathrooms

Share:

The Telescopic Grab Bar is a cutting-edge solution for elderly care and individuals with limited mobility. Designed for maximum flexibility, durability, and style, this grab bar enhances safety while seamlessly blending into modern bathroom interiors. With adjustable lengths and versatile mounting options, it provides the perfect balance of functionality and aesthetics, ensuring independence and security for its users.


Engineered for precise positioning, the telescopic grab bar fits walls with fiber cement sheets and studs, supporting horizontal, vertical, or diagonal installation. Its extendable design ensures compatibility with a wide range of wall configurations, making it an ideal choice for residential and care facilities alike

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

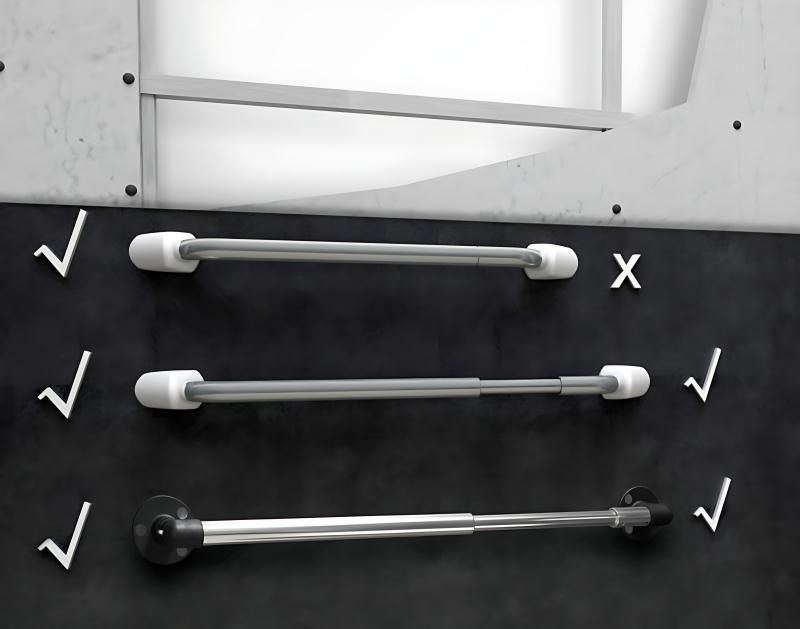

1. Unique Adjustable Design: Telescopic functionality allows for a 150mm adjustment, accommodating uneven walls or re-cladded surfaces, ensuring a perfect fit.
2. Versatile Installation Options: Can be installed horizontally, vertically, or diagonally, compatible with walls featuring fiber cement sheets and studs for stable and secure installation.
3. Superior Durability and Safety: Crafted from anodized aluminum alloy, supporting up to 150 kg and fully tested to meet ISO 17966:2016 standards, ensuring top-tier safety.
4. Multi-Functional Utility: Beyond safety, serves as a holder for towels, clothing, and more, offering versatility in design and application.
5. Elegant and Ergonomic Design: Features ergonomic curves for a comfortable grip and colorful flange bases to enhance bathroom aesthetics.
6. Upgrade Your Bathroom Safety with Aicube Telescopic Grab Bar
Enhance your bathroom's safety and functionality today. The Telescopic Grab Bar offers unparalleled flexibility, durability, and style—your ultimate solution for secure and adaptable mobility support.

Key Features

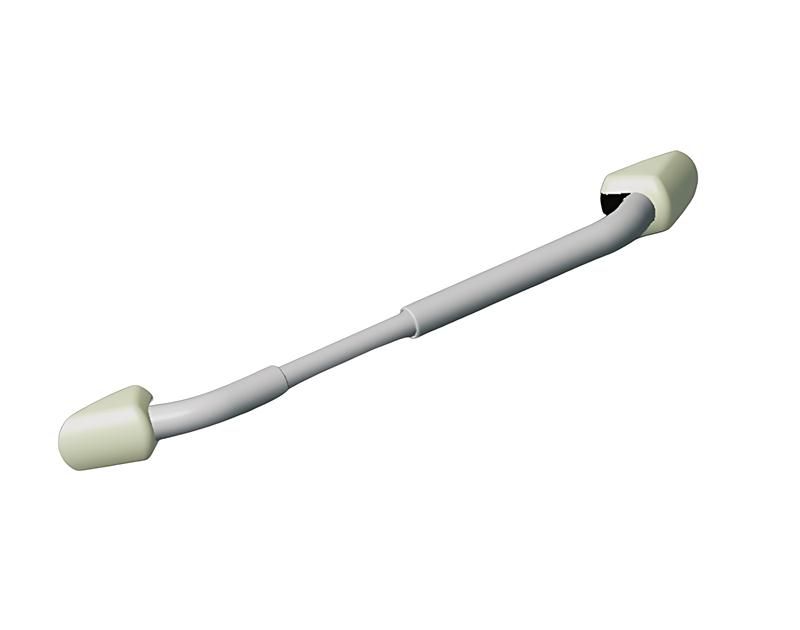

1. Unique Adjustable Design

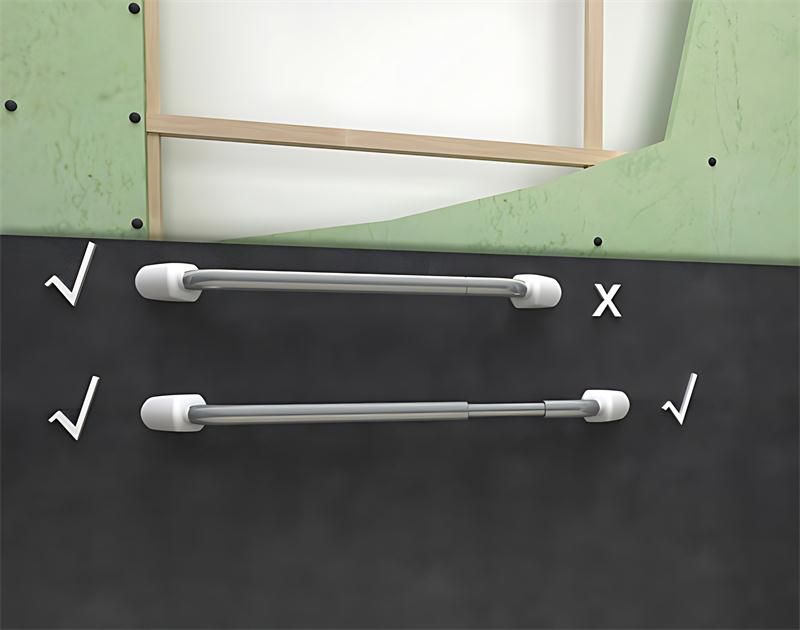

o Telescopic Functionality: Allows a 150mm adjustment to accommodate uneven walls or re-cladded surfaces. For example, the XFS-600-750 model adjusts seamlessly from 600mm to 750mm.

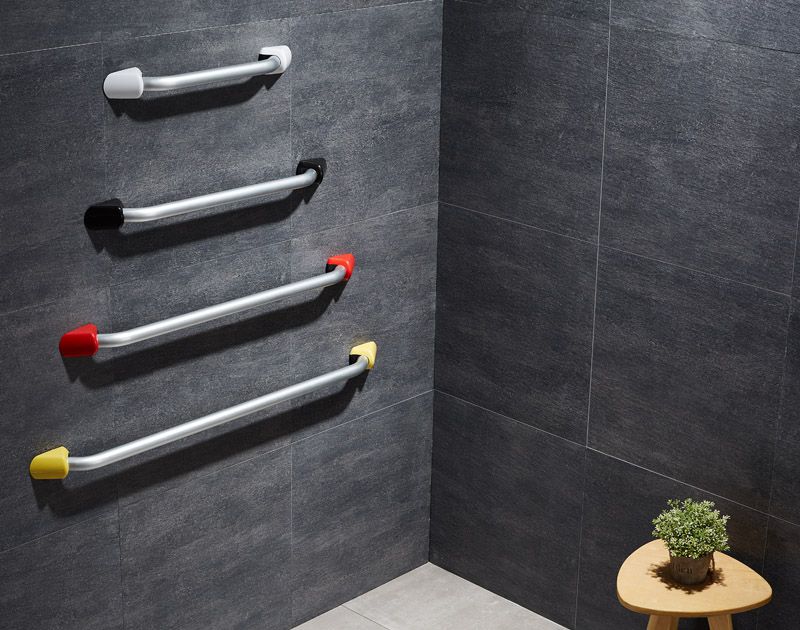

o Elegant Arc Design: Ergonomic curves for a comfortable grip, complemented by colorful flange bases to enhance bathroom aesthetics.
2. Versatile Installation Options
o Install horizontally, vertically, or diagonally to meet specific needs.
o Compatible with walls featuring fiber cement sheets and studs, ensuring stable, secure installation.
3. Superior Durability & Safety
o Crafted from anodized aluminum alloy, ensuring exceptional strength and corrosion resistance.
o Supports up to 150 kg, with a 35mm diameter for a secure grip suitable for all hand sizes.
o Fully tested to meet ISO 17966:2016 standards, ensuring top-tier safety for elderly and disabled care products.
4. Multi-Functional Utilityo Use beyond safety—serves as a holder for towels, clothing, and more, offering versatility in design and application.

Specifications

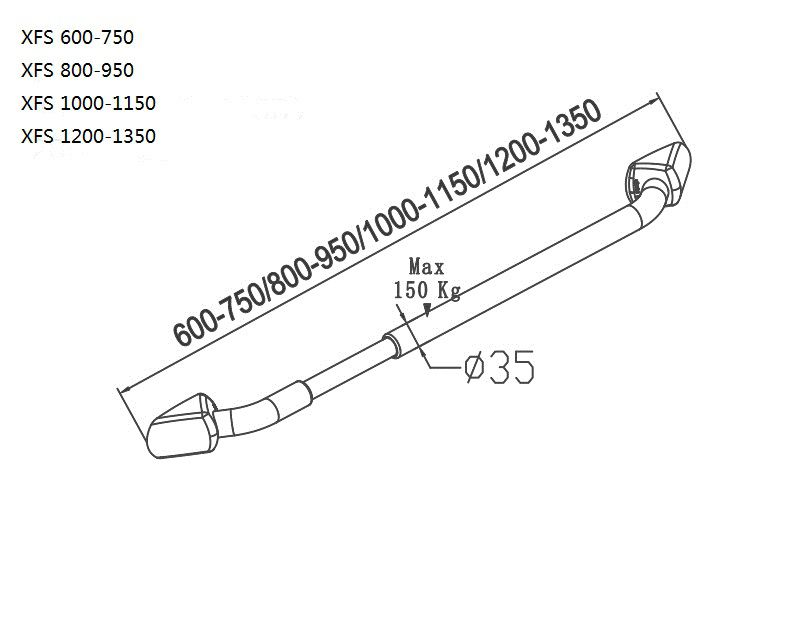

1. Item Number: XFS 600-750, XFS 800-950, XFS 1000-1150, XFS 1200-1350
2. Available Sizes:
o XFS-600-750: Extends from 600mm to 750mm
o XFS-800-950: Extends from 800mm to 950mm
o XFS-1000-1150: Extends from 1000mm to 1150mm
o XFS-1200-1350: Extends from 1200mm to 1350mm
3. Color Options: Dark Silver, Matte Black
4. Weight Capacity: Up to 150 kg
5. Standards Compliance: ISO 17966:2016
6. Important Installation Notes
Secure Mounting: Ensure the flange base is securely fixed to metal or wood studs or reinforced wall sections for optimal safety and stability.
· Target Audience:
o Homeowners prioritizing safety and accessibility in bathroom design.
o Care facilities, hospitals, and senior living communities.
o Distributors and retailers of elderly care and mobility products.

Composition and Materials

1. Grab Bar: Durable anodized aluminum alloy for long-lasting use.
2. Flange Base: PP material reinforced with 15% glass fiber for added strength.
3. Fasteners & Kits: Stainless steel components for secure and corrosion-resistant installation.

Packaging

1. Packaging Details:
o Each grab bar is securely packed in a sturdy brown carton to ensure safe delivery.
2. Model | Carton Size | Gross Weight
o XFS-600-750 | 650x110x100mm | 1.22 kg
o XFS-800-950 | 850x110x100mm | 1.55 kg
o XFS-1000-1150 | 1050x110x100mm | 1.88 kg
o XFS-1200-1350 | 1250x110x100mm | 2.21 kg

Maintenance

1. Routine Cleaning: Use hot water or mild soap.
2. Stain Removal: Clean chalky deposits using a 3:7 acetic acid-to-water solution. Wipe down with a damp cloth and dry immediately.
3. Avoid: Chlorine-based, abrasive, or corrosive cleaners to maintain surface finish.

Technical Data Sheet

XSA-B450 Installation

XSA-B450 Installation

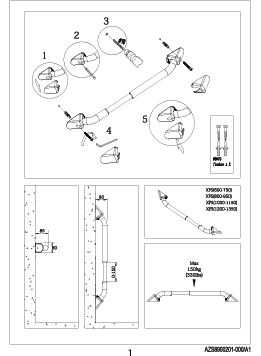

Installation Manual

XFS Grab Bar Installation

XFS Grab Bar Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
