HA-L650 Hinged Foldable Toilet Grab Rails for Elderly and Handicap Care

Share:

Aicube Toilet Grab Rails are designed to provide enhanced safety and support for elderly individuals, pregnant women, or those with mobility challenges. With a foldable hinge and a robust aluminum alloy build, these grab bars ensure reliability and convenience in bathrooms and washrooms.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Premium Quality and Durability

· Constructed with super-grade anodized aluminum alloy with a thickness exceeding 1.7mm for exceptional strength and longevity.

· Passed ISO 17966:2016 static and life cycle tests, ensuring superior performance and reliability.


2. Space-Saving Foldable Design

· The flip-up mechanism allows the grab bar to be raised vertically when not in use, maximizing space in compact bathrooms or toilets.

· Ideal for small restrooms, nursing homes, and private homes.



3. Safety and Stability

· Supports up to 150 kg, providing a sturdy handhold for sitting, standing, or transferring from a wheelchair.

· Equipped with a heavy-duty hinge to prevent accidental falls, ensuring safety during use.

· Suitable for bathrooms, showers, or toilets, offering a secure aid for users in various settings.


4. Ergonomic and Functional Design

· The gripping bar ends are made of PA6 reinforced with 30% glass fiber for added stability and a clear tactile sense of where the support arm ends.

· The hinge barrel features TPE plastic caps for smooth operation.

· The stainless-steel fasteners and fixing kits ensure corrosion resistance in wet environments.


5. Stylish Chrome Finish

· The sleek bright chrome color complements most bathroom fixtures, providing a modern and aesthetic appeal.

Key Features

1. High-Quality Construction: Made from super-grade anodized aluminum alloy with a thickness exceeding 1.7mm.

2. Foldable Design: Flip-up mechanism for vertical storage, saving space in compact areas.

3. Heavy-Duty Hinge: Prevents accidental falls and ensures stability during use.

4. Ergonomic Grip: PA6 reinforced with 30% glass fiber for added stability and tactile feedback.

5. Smooth Operation: TPE plastic caps on the hinge barrel for seamless movement.

6. Corrosion-Resistant Fasteners: Stainless-steel fasteners and fixing kits for durability in wet environments.

7. Modern Aesthetic: Bright chrome finish for a stylish look.


Specifications

HA-L650 Hinged Foldable Toilet Grab Rails for Elderly and Handicap Care

· Material: Anodized aluminum alloy, PA6 with reinforced glass fiber, TPE plastic, and stainless steel.

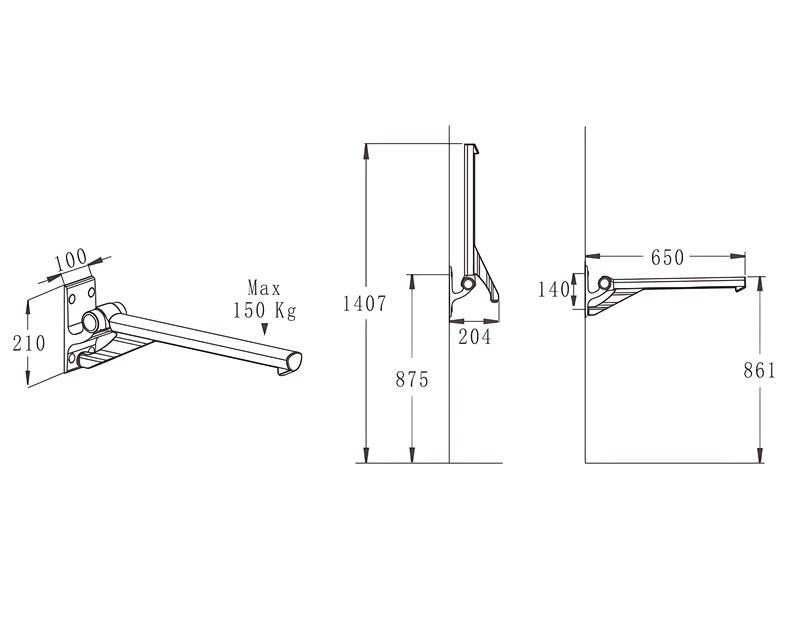

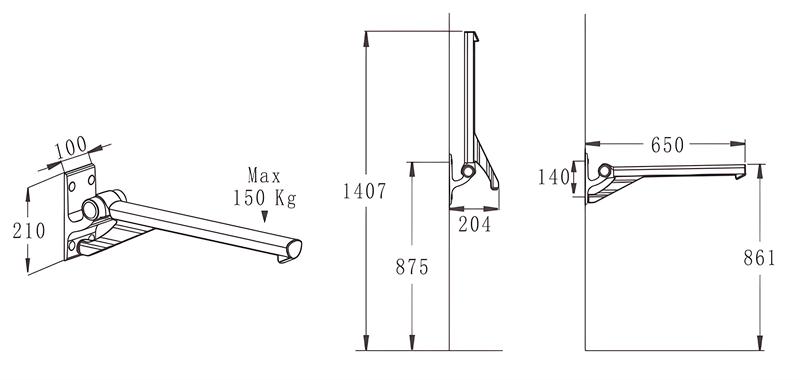

· Dimensions: Hinged grab rail length: 650mm.

· Weight Capacity: Up to 150 kg.

· Packaging: One piece per carton (Carton Size: 710x240x130mm, Gross Weight: 3.5 kg).

· Applications

o For Elderly and Pregnant Women: Provides assistance for safe standing and sitting in the bathroom.

o Handicap and Mobility Challenges: Facilitates wheelchair transfers and stable support in private homes, nursing homes, and hospitals.

o Bathroom Safety: Ideal for wet areas such as showers, restrooms, and washrooms.

· Warm Notes

o Foldable Design: Slight horizontal wiggle when the bar is in use does not affect safety or stability.

o Installation: Ensure proper installation using the provided stainless-steel fasteners for maximum security.


Composition and Materials

  • Grab Bar: Super-grade anodized aluminum alloy (thickness >1.7mm).

  • Gripping Bar Ends: PA6 reinforced with 30% glass fiber.

  • Hinge Barrel: TPE plastic caps for smooth operation.

  • Fasteners and Fixing Kits: Stainless steel for corrosion resistance.

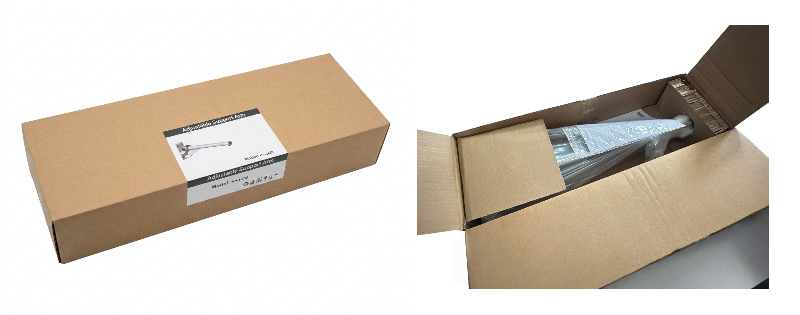

Packaging

  • Carton Size: 710x240x130mm.

  • Gross Weight: 3.5 kg.

  • Packaging Details: One piece per carton, securely packed for safe transport.

Maintenance

  • General Cleaning: Use hot water or a mild soapy cleaning agent.

  • Removing Deposits: Clean aluminum parts with a 3:7 solution of acetic acid and tap water. Rinse thoroughly with a damp cloth and dry immediately to prevent discoloration or surface damage.

  • Avoid: Chlorine-based, corrosive, or abrasive cleaners to protect the surface finish.

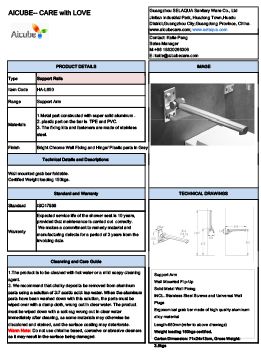

Technical Data Sheet

HA-L650 Technical Data

HA-L650 Technical Data

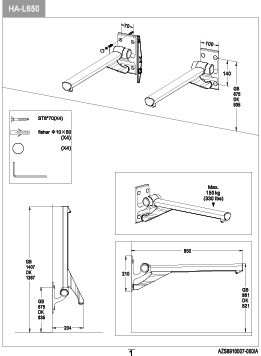

Installation Manual

HA-L650 Installation

HA-L650 Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
