HB-L680M Adjustable Wood Toilet Grab Rails for Elderly and Handicap Care

Share:

Engineered for optimal safety and convenience, the Adjustable Toilet Grab Rails cater to the needs of seniors, pregnant women, and individuals with limited mobility. Featuring a robust anodized aluminum frame and a premium pine wood grip, these rails provide an ideal blend of durability, elegance, and functionality. The natural wood grain evokes a sense of homeliness, while the foldable structure maximizes spatial efficiency. With a water-resistant and mold-proof finish, they are built to withstand humid environments while maintaining their aesthetic appeal.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Superior Build for Long-Lasting Performance

· Constructed from high-strength anodized aluminum alloy with a thickness exceeding 1.7mm for exceptional durability.

· Certified in compliance with ISO 17966:2016 standards, ensuring reliability in demanding applications.


2. Premium Pine Wood Grip with Added Advantages

· Made from 100% imported heartwood pine, offering a naturally warm and non-slip surface for enhanced comfort and safety.

· Treated with eco-friendly oils and advanced nano-coating for resistance against moisture, mold, and surface damage.

· The natural wood tone introduces a cozy, home-like ambiance.


3. Space-Saving Foldable Design

· Features a convenient vertical flip-up mechanism, enabling the grab rail to be stored compactly when not in use.

· Perfect for small bathrooms, assisted living facilities, and residential spaces.


4. Adjustable Height for Custom Comfort

· Equipped with an adjustable wall-mounted track to accommodate users of varying heights, ensuring ergonomic support for sitting, standing, or transitioning.


5. Robust Safety and Stability

· Supports a load capacity of up to 150 kg, providing dependable assistance for daily movements or wheelchair transfers.

· Reinforced hinges enhance stability during use, minimizing the risk of accidents.


6. Thoughtful Ergonomic Design

· The grip ends feature PA6 material with 30% glass fiber reinforcement for a secure hold and added strength.

· TPE-capped hinge barrels ensure smooth operation without noise disruptions.

· Stainless steel hardware enhances corrosion resistance, making it ideal for damp environments.


7. Elegant Chrome Finish with Natural Accents

· A polished chrome surface harmonizes with contemporary bathroom aesthetics.

· The pine wood details infuse warmth and a natural touch, creating a more inviting environment.

Key Features

· High-Quality Construction: High-strength anodized aluminum alloy with a thickness exceeding 1.7mm.

· Premium Pine Wood Grip: 100% imported heartwood pine with eco-friendly oils and nano-coating for moisture and mold resistance.

· Foldable Design: Vertical flip-up mechanism for compact storage.

· Height Adjustability: Adjustable wall-mounted track for ergonomic support.

· Heavy-Duty Hinge: Reinforced hinges for enhanced stability.

· Ergonomic Grip: PA6 with 30% glass fiber reinforcement for a secure hold.

· Smooth Operation: TPE-capped hinge barrels for quiet and seamless movement.

· Corrosion-Resistant Hardware: Stainless steel for durability in damp environments.

· Modern Aesthetic: Polished chrome finish with pine wood accents for a stylish look.

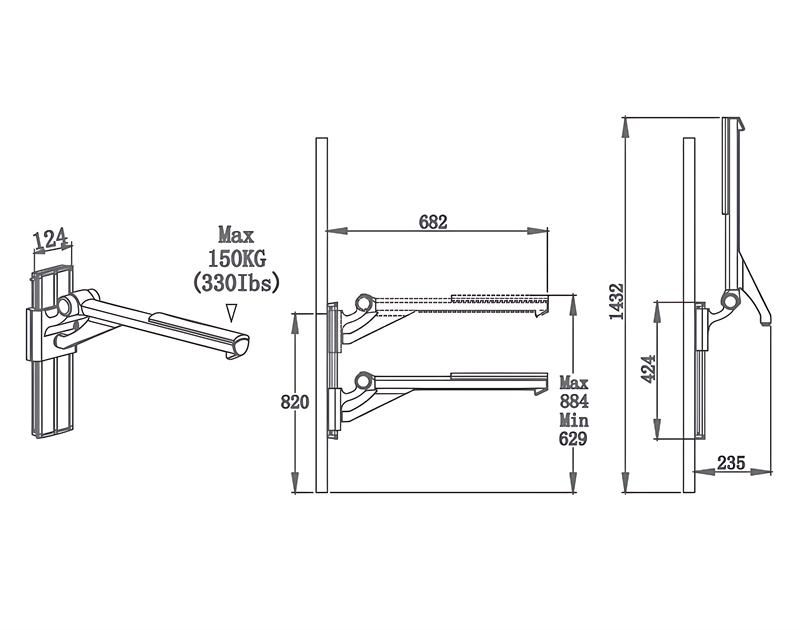

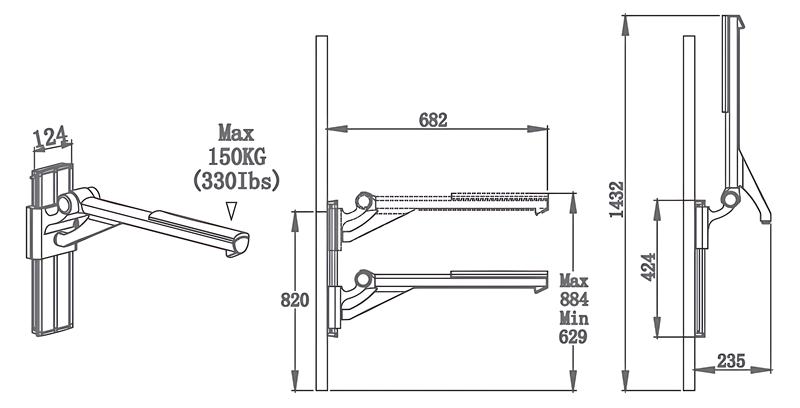

Specifications

HB-L680M Adjustable Wood Toilet Grab Rails for Elderly and Handicap Care

· Material: Anodized aluminum alloy, pine wood grip, PA6 with reinforced glass fiber, TPE plastic, and stainless steel.

· Dimensions: Hinged grab rail length: 682mm.

· Weight Capacity: Up to 150 kg.

· Packaging: Single unit per carton (810x270x280mm, Gross weight: 6 kg).

· Target Audience: Homeowners, nursing facilities, hospitals, hotels, and accessibility solution providers.

· Applications

o For Elderly and Pregnant Users: Provides secure assistance for safe bathroom use.

o Mobility Support: Improves accessibility for those requiring stable handholds or wheelchair transfer assistance.

o Bathroom Safety: Designed for use in showers, toilets, and other areas prone to wet conditions.

· Important Notes

o Foldable Mechanism: Slight horizontal movement is normal and does not compromise safety.

o Installation: Ensure proper installation using the supplied stainless-steel mounting hardware for maximum reliability.


Composition and Materials

· Grab Bar: High-strength anodized aluminum alloy (thickness >1.7mm).

· Wooden Grip: 100% imported heartwood pine with eco-friendly oils and nano-coating.

· Gripping Bar Ends: PA6 reinforced with 30% glass fiber.

· Hinge Barrel: TPE plastic caps for smooth operation.

· Fasteners and Fixing Kits: Stainless steel for corrosion resistance.

Packaging

· Carton Size: 810x270x280mm.

· Gross Weight: 6 kg.

· Packaging Details: Single unit per carton, securely packed for safe transport.

Maintenance

· General Cleaning: Use warm water and a mild cleaning solution.

· Removing Tough Stains: Mix a 3:7 solution of acetic acid and water to clean metal surfaces. Wipe with a damp cloth and dry immediately to avoid discoloration.

· Avoid: Using abrasive or corrosive cleaners to protect the chrome and wood finishes.

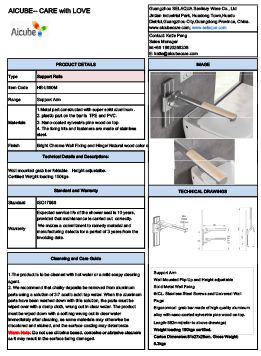

Technical Data Sheet

HB-L680M Technical Data

HB-L680M Technical Data

Installation Manual

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.

Related Products

HA-L650 Hinged Foldable Toilet Grab Rails for Elderly and Handicap Care

HA-L650 Hinged Foldable Toilet Grab Rails for Elderly and Handicap Care

Aicube Toilet Grab Rails are designed to provide enhanced safety and support for elderly individuals, pregnant women, or those with mobility challenges. With a foldable hinge and a robust aluminum alloy build, these grab bars ensure reliability and convenience in bathrooms and washrooms.

HB-L680 Black Height Adjustable Shower Grab Rails with Black Oxidized Finish

HB-L680 Black Height Adjustable Shower Grab Rails with Black Oxidized Finish

The Aicube Adjustable Grab Rails are engineered to align with accessibility standards, offering versatile and dependable bathroom support.

XHB-U658 Chrome U Shaped Height Adjustable Shower Grab Rails for Bathroom

XHB-U658 Chrome U Shaped Height Adjustable Shower Grab Rails for Bathroom

The U Shaped Height Adjustable Grab Rails are the ultimate solution for safe and flexible bathroom support, designed to meet ADA standards.

XHA-U622 Chrome U Shaped Hinged Foldable Toilet Grab Rails: Reliable Safety and Ergonomic Support

XHA-U622 Chrome U Shaped Hinged Foldable Toilet Grab Rails: Reliable Safety and Ergonomic Support

U Shaped Toilet Grab Rails are the ultimate bathroom safety solution, tailored for elderly individuals, pregnant women, and those with mobility challenges.

HB-L680 Chrome ADA Adjustable Shower Grab Rails for Bathroom

HB-L680 Chrome ADA Adjustable Shower Grab Rails for Bathroom

Aicube Adjustable Grab Rails are designed to meet ADA standards, providing flexible and safe support for bathrooms. Ideal for elderly individuals, pregnant women, or those with mobility challenges, these grab bars combine durable materials with a user-friendly, tool-free adjustable design to ensure comfort and safety.

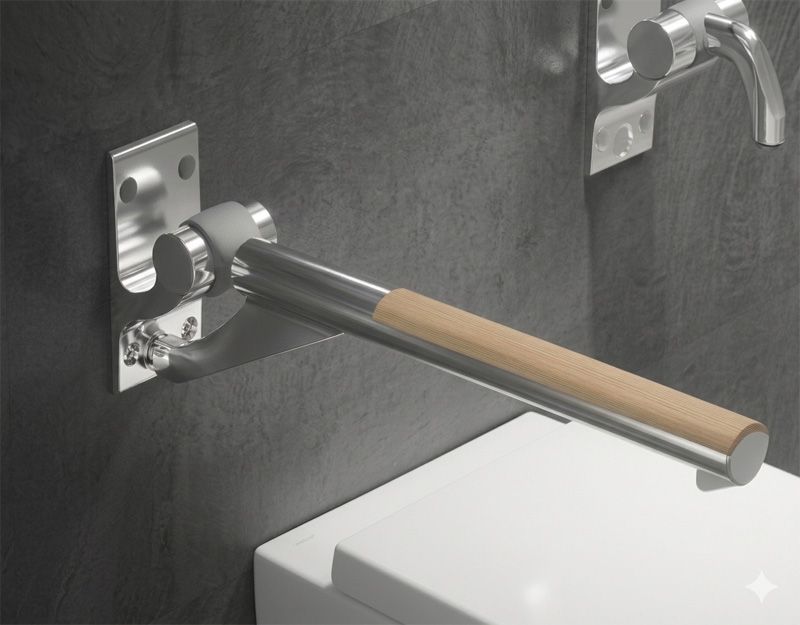

HA-L650M Elegant Wood Grab Toilet Grab Rails for Elderly and Handicap Care
