XHA-U622 Chrome U Shaped Hinged Foldable Toilet Grab Rails: Reliable Safety and Ergonomic Support

Share:

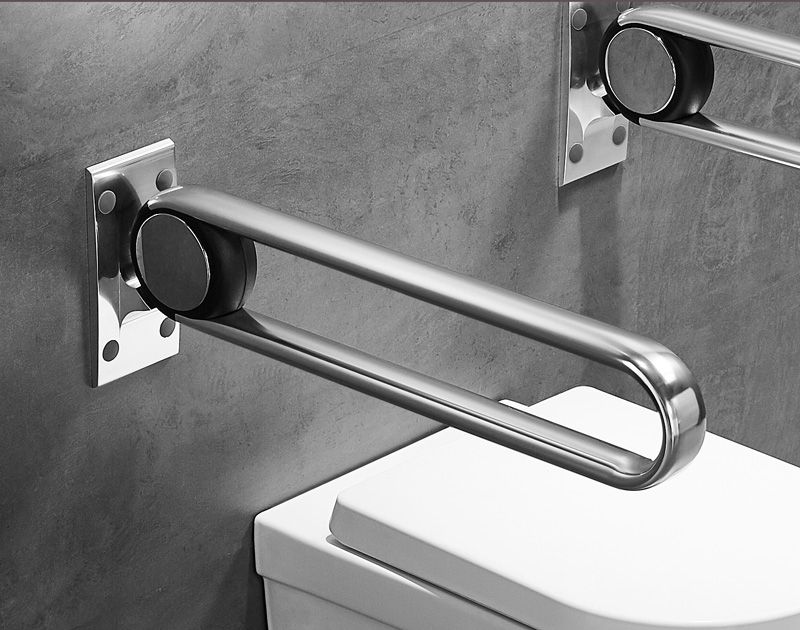

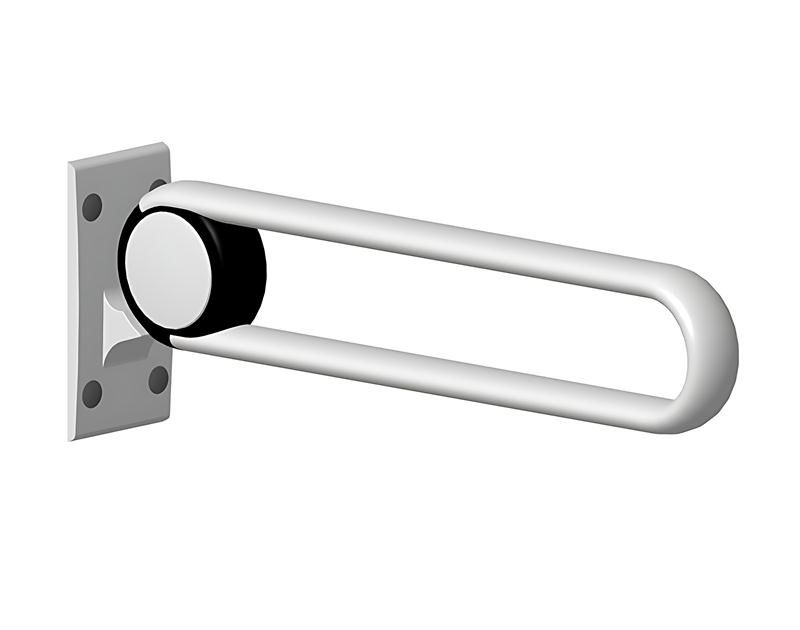

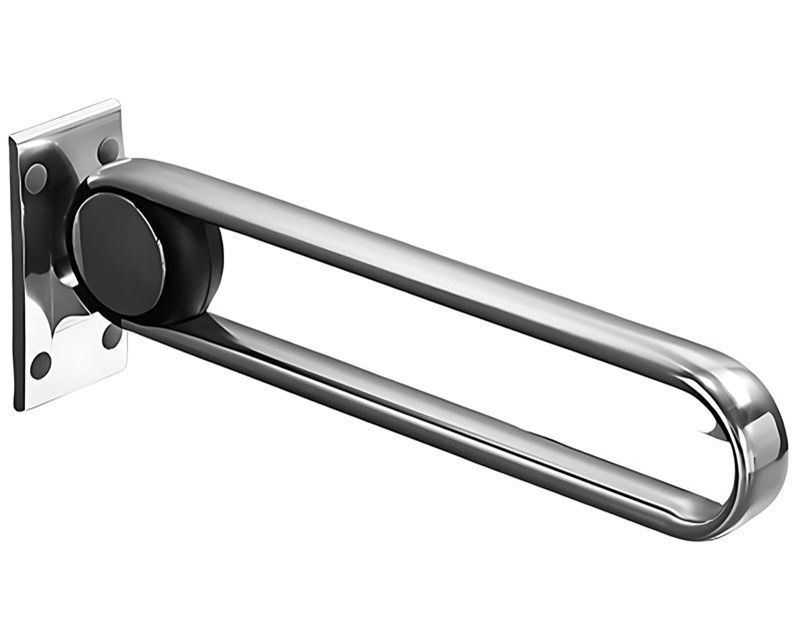

U Shaped Toilet Grab Rails are the ultimate bathroom safety solution, tailored for elderly individuals, pregnant women, and those with mobility challenges. These grab rails provide secure support for sitting down or standing up, ensuring safety and comfort. Featuring an ergonomic U-shaped design, a foldable hinge mechanism, and robust aluminum alloy construction, they are an ideal addition to modern bathrooms.

Advantage

Key Features

Specifications

Composition and Materials

Packaging

Maintenance

Technical Data Sheet

Installation Manual

FAQ

Advantage

1. Superior Durability and Quality: Manufactured from high-grade anodized aluminum alloy with a thickness of over 1.7mm for long-lasting performance. Certified under ISO 17966:2016, meeting the highest standards for static and lifecycle performance.

2. Space-Saving Foldable Design: Innovative flip-up mechanism allows the grab rail to fold vertically when not in use, optimizing bathroom space. Perfect for compact bathrooms, nursing homes, and residential care settings.

3. Enhanced Safety and Stability: Supports up to 150 kg, offering reliable assistance for standing, sitting, or wheelchair transfers. Reinforced hinge system minimizes the risk of accidental slips or falls. Designed for use in toilets, showers, and other wet bathroom environments.

4. Ergonomic and Comfortable: The U-shaped structure ensures even pressure distribution, providing maximum support and comfort during transitions.

5. Hygienic and Easy to Maintain: Streamlined design eliminates hard-to-clean corners, simplifying maintenance. Resistant to stains and discoloration with proper cleaning.

6. Modern and Minimalistic Design: Sleek aesthetic complements contemporary bathroom interiors, seamlessly blending functionality with style

7. Why Choose Aicube U Shaped Hinged Grab Rails?

Aicube Hinged Foldable Toilet Grab Rails redefine bathroom safety with their ergonomic design, durable materials, and innovative foldable mechanism. Whether for elderly care, mobility assistance, or enhanced safety in wet environments, these grab rails deliver unmatched reliability and style.


Key Features

  • High-Quality Construction: High-grade anodized aluminum alloy with a thickness exceeding 1.7mm.

  • Foldable Design: Flip-up mechanism for vertical storage, ideal for compact spaces.

  • Reinforced Hinge System: Prevents accidental slips or falls, ensuring stability.

  • U-Shaped Structure: Ensures even pressure distribution for maximum comfort and support.

  • Hygienic Design: Streamlined for easy cleaning and maintenance.

  • Modern Aesthetic: Sleek and minimalistic design to complement contemporary bathrooms.

  • Color Options: Available in bright chrome, black, and gold.

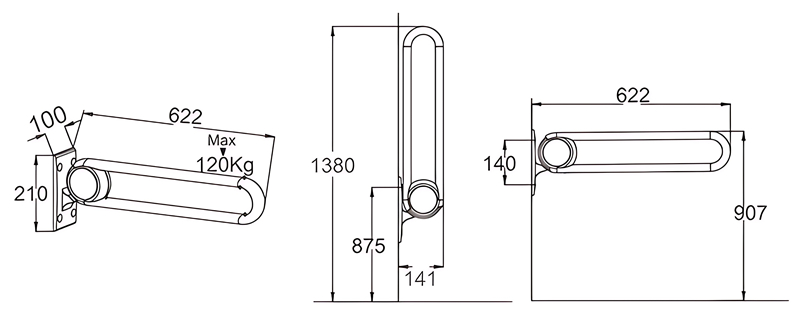

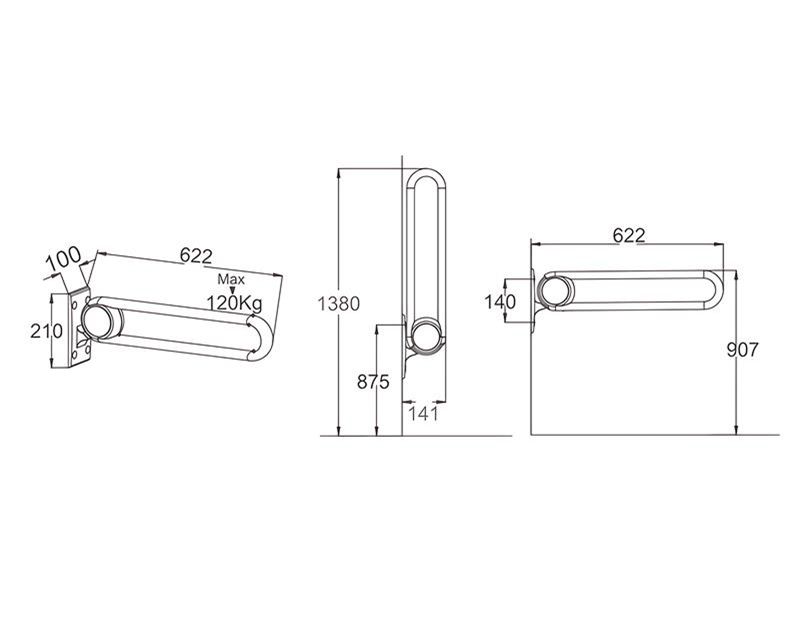

Specifications

XHA-U622 Chrome U Shaped Hinged Foldable Toilet Grab Rails: Reliable Safety and Ergonomic Support

  • Material: Anodized aluminum alloy, reinforced PA6, TPE plastic, stainless steel.

  • Dimensions: 622mm length.

  • Weight Capacity: Up to 150 kg.

  • Packaging: One piece per carton (Carton size: 680x250x120mm, Gross Weight: 3.65 kg).

  • Color available: Bright chrome, Black, Gold

  • Target Audience: Nursing homes, hospitals, residential care facilities, private homes, and hotel bathroom safety providers.

  •  Applications

  •  Elderly and Pregnant Women: Offers assistance for safe transitions in bathrooms.

  •  Mobility Impaired Users: Facilitates wheelchair transfers and stable support.

  •  Bathroom Safety: Ideal for wet environments, providing essential support near toilets, showers, and wash basins.

  • Warm Notes

  • Foldable Mechanism: Slight horizontal wiggle during use is normal and does not compromise safety.

  • Installation: Ensure proper installation with the provided stainless-steel fasteners for optimal stability.

Composition and Materials

  • Grab Bar: High-grade anodized aluminum alloy (thickness >1.7mm).

  • Gripping Bar Ends: Reinforced PA6 for added strength.

  • Hinge Barrel: TPE plastic caps for smooth operation.

  • Fasteners and Fixing Kits: Stainless steel for corrosion resistance.

Packaging

  • Carton Size: 680x250x120mm.

  • Gross Weight: 3.65 kg.

  • Packaging Details: One piece per carton, securely packed for safe transport.

Maintenance

  • General Cleaning: Use hot water or mild soapy solutions for general cleaning.

  • Removing Deposits: Apply a 3:7 acetic acid and water solution on aluminum parts. Rinse and dry immediately to preserve surface finish.

  • Avoid: Chlorine-based or abrasive cleaners to prevent damage.

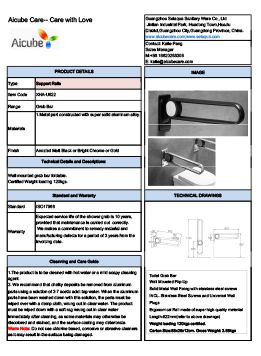

Technical Data Sheet

XHA-U622 Technical Data

XHA-U622 Technical Data

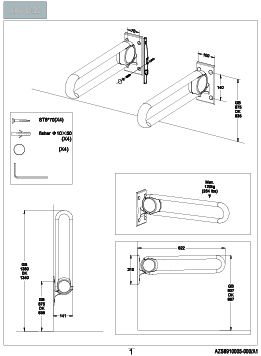

Installation Manual

XHA-U622 Installation

XHA-U622 Installation

FAQ

Q: Who is these products suitable for?

A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.

Q: How to install and use these facilities?

A: The products come with an instruction manual for installation and use.

Q: How to clean or maintain the product?

A:

The product is to be cleaned with hot water or a mild soapy cleaning agent.

▶ Do not use an autoclave or other type of steam cleaner.

▶ Avoid aggressive cleaning agents containing acids

▶ Never spray the product directly with a high pressure cleaner.

▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.

▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.


Maintenance

Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.

Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.

Q: How to choose bathing stools and other aids for the elderly?

A:

When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:

1. Safety

Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.

Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.

Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.

2. Comfort

Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.

Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.

Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.

3. Convenience

Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.

Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.

4. Adjustability and Multi-functionality

Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.

Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.

5. Seek Professional Advice

Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.

Other Considerations

Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.

User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.

Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
